Physical Engine ​

Our physical engine creates procedural destruction, making blocks fly around realistically during gameplay. Blocks not only get destroyed but also respond to gravity and explosion forces.

How It Works

We use WorldEdit to save two arena states: initial snapshot (starting state) and damaged snapshot (destroyed state).

Key Features ​

  • Prevents player escape by controlling which parts can be destroyed
  • Creates unique destruction patterns in each game

An arena snapshot captures all blocks within the region at a specific moment.

Compatibility

  • FastAsyncWorldEdit: May interfere with block physics. Test without FAWE if issues occur.
  • WorldGuard: Ensure -build and -block-place flags are not set to "false".

Making Snapshots ​

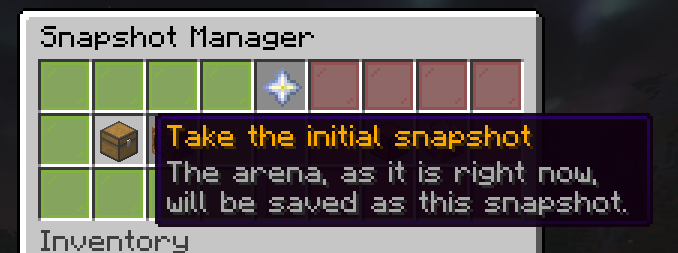

Taking Snapshot

To create snapshots:

  1. Get the Region Tool via /ma tools
  2. Select region with right/left clicks (bottom-first, top-last corners)
  3. Create snapshots as follows:

First Snapshot ​

Initial State

Take this before any damage. Arena should be in pristine condition.

  1. Type /ma menu <yourArena> → click "Snapshot" → "Take the First Snapshot"

Second Snapshot ​

Damaged State

Take after destroying the arena (use Creative mode with Nuker feature for efficient destruction).

  1. Use same menu as above, but select "Last Snapshot" option
